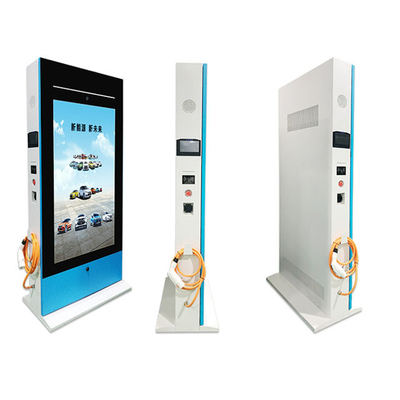

Large Outdoor Advertising Kiosk Screen Display Stand Rack Shelf Electronic Filling Stack Digital Signage Touch Screens

Big outdoor advertising screen kiosk outdoor advertising digital display Touch screens Electronic charging pile

Outdoor Display

Vertical screen landing standard

(Intelligent windy temperature control system)

Specification

1 . composition

1.1 Shell design: 1.0-2.0mm  galvanized sheet,Spray Aksu outdoor special powder,Outdoor anticorrosion for more than 7 years.

1.2 water-proof design:The shell structure design waterproof trough and air hole waterproof labyrinth, meet the ip55 protection grade.

1.3 Dustproof design: the inlet and outlet design of special dust prevention filter (medium-efficient dust filter), filter the air dust, and prevent mosquitoes and so on into the inside of the machine.

1.4 High permeable glass: 6mm high permeable toughened glass or ar glare proof toughened glass are adopted in front of the whole machine. The transmittance is more than 97 and high transmittance.

1.5 Maintenance: the whole machine adopts front and rear door opening, easy to maintain the internal display, glass, heat dissipation components and electronic parts; the whole machine adopts modular design for easy installation and maintenance.

1.6 Anti-theft design: the base / trailer adopts the internal lock type design, prevents from the outside may remove the screw movement machine equipment, truly achieves the security and thefts.

2 . Display

2.1 Outdoor high-brightness LCD screen, luminance 1500-2500nit. visible under strong light, design life of 50000 hours.

2.2 High resolution, screen resolution: 1920x1080.

2.3 High dynamic contrast, the picture is clearer, the visual angle is 178 °.

2.4 Intelligent photosensitive system, can automatically adjust screen brightness according to the environment, users can clearly / comfortably watch programs at different times, protect eyes.

2.5 Intelligent color calibration, automatic calibration contrast color or manual fine-tuning, presents the perfect picture.

3 . Intelligent temperature control system

3.1 Adopt intelligent direct wind (forced air cooling) heat dissipation system, professional and special heat dissipation design.

3.2 The self-developed intelligent temperature control system control box can intelligently adjust the internal air and external air of the whole machine according to the internal temperature of the advertisement machine, and all external wind enters the filter screen first, and the wind is divided into two air duct cycles before/ after the screen.

3.3 Equipped with high temperature automatic power off protection function, when the product due to external factors or internal reasons cause abnormal temperature inside the machine, and beyond the reasonable working range, the control system will protect the main parts such as the display screen from power loss.

4 . electronic structure

4.1 The product selects the well-known manufacturer intelligent industrial control motherboard, single machine / Android / industrial control computer motherboard may choose, default Android dual core. Support for remote and local program management (optional).

4.2 International famous industrial switching power supply, applicable to different countries in the world voltage, safety, stability, long life, high energy efficiency.

4.3 Built-in leakage protector, lightning protection and so on, all-round safety protection.

4.4 Configure a precise timer, both in English and Chinese, and can be set repeatedly for multiple times. Press the day, week, and month to switch the machine.

4.5 Over-temperature protection: when the internal temperature is high due to the special circumstances, such as when the air inlet is blocked, etc., the system will turn off the LCD power supply, the air-cooling system will continue to cool down normally, and protect the LCD screen. Main parts such as motherboard.

5. Electronic function

1. Android system

Can select a well-known manufacturer A20,A83,3188,3288 and other motherboards, high performance. The default A20 dual-core 1+8G, support 2+ 8G, 2 +16G, 2+ 32G and other optional configurations.

Android version 4.4 or 5.0 is available. Wireless version 4.0 is supported.

Memory: 1g/2g

Built-in memory: 8g/16g/32g

Decoding resolution: support for 1920x1080 and above resolution. Playback mode: support loop, timing, plug-in, split-screen and partition play, support for multimedia elements

Network support: Ethernet, optional wireless peripheral extension, Optional 3g/4g module)

 Video playback: support wmv,avi,flv,rm,rmvb,mpeg,ts,mp4,vod,mov,mkv,mp3,aac format image format: support jpeg,png,gig,bmp and other

file format: support txt,ppt,word,ecele and other

video output; support lvds format video output

audio output: support hdmi high-definition video output, left and right channel output, Built-in 2 G 5 w high-quality sound.

Optional support information publishing system: rtc real-time clock, timing boot, udisk update playlist, udisk network upgrade, remote control

2.X86  Computer version system

CPU: I3/I5/I7/1900(Option)

RAM:2G/4G/8G

Hardisk:HDD500G/1000G,MSSD64G/128G/256G

O/S:WINDOWS7/10,LINUX

Decoding resolution:support 1920X1080 and above

Network support: Ethernet (optional 2), optional wireless peripherals extension, optional 3g/4g module

video: support hdmi,vga format video

output audio: left and right channel output, built-in 2x10w high quality audio.

Peripheral support: can support 4xusBU 2x serial port (optional 6), 2xsata interface can be optional to support information distribution system: rtc real-time clock, timing boot, udisk update playlist, udisk network upgrade, remote control

Product application field
